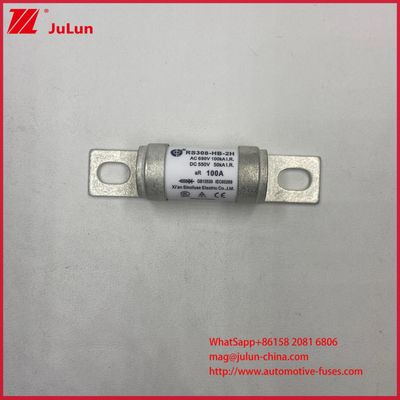

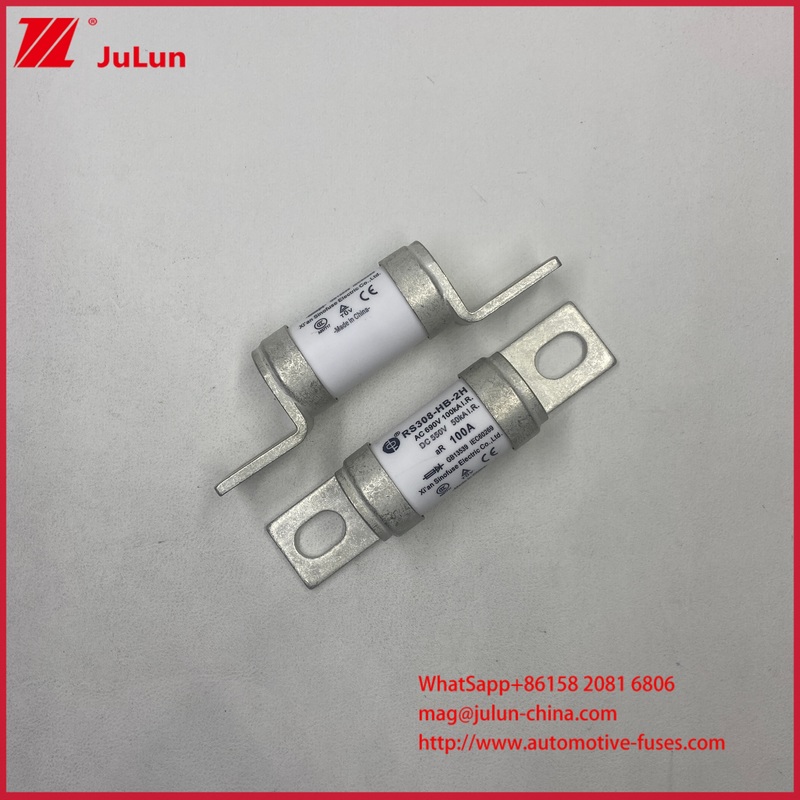

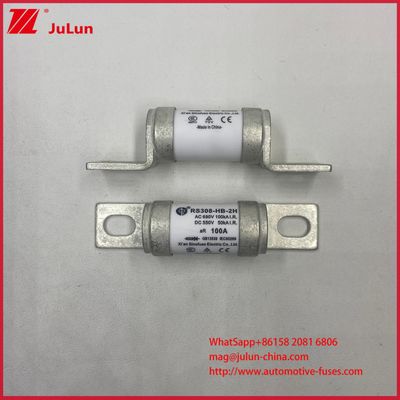

Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | SINO FUSE |
| Certification: | UL |
| Numéro de modèle: | RS308-HB-2H 63A 80A |
Conditions de paiement et expédition:
| Minimum Order Quantity: | 10 |
|---|---|
| Prix: | 5~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Conditions de paiement: | T-T, T/T |
| Supply Ability: | 1000K/PCS |
|
Détail Infomation |
|||
| Courant nominal: | 10A à 710A | Boulon d'installation: | M6 M8 |
|---|---|---|---|
| Méthode de montage: | boulon à vis | Matériel: | Céramique cuivre argent quartz sable or |
| Fonctionnalité: | Petite taille avec courant nominal élevé pour la protection contre le court-circuit | Capacité de rupture: | AC100KA@COSφ0.2，DC50KA@L/ R≤10ms |
| La performance fait référence: | IEC60269 et la fiabilité environnementale est conforme aux normes ISO8820, JASO D622 et GB/T31465 | Produit d'application: | Système de traction des véhicules électriques, conversion de puissance, stockage d'énergie, chargeur |
| Mettre en évidence: | ceramic automotive fuses for round pipe,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses |
||
Description de produit
Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
In summary, the Ceramic Automotive Fuses combine compactness with high current capacity, robust ceramic construction, and dependable bolt-connected fast fuse mounting, making them an excellent choice for modern automotive electrical protection. Their compliance with international performance and environmental standards assures users of their quality and reliability. Whether for passenger cars, commercial vehicles, or specialized automotive equipment, these Ceramic Car Fuses provide effective and durable short circuit protection, helping to maintain electrical system integrity and vehicle safety.
Technical Parameters
| Performance Standard | IEC60269 |
|---|---|
| Environmental Reliability | Complies with ISO8820, JASO D622, and GB/T31465 |
| Rated Voltage | AC690V / DC550V |
| Installation Bolt | M6, M8 |
| Rated Current | 10A to 710A |
| Application | EV Traction System, Power Conversion, Energy Storage, Car Charger, and etc. |
| Mounting Method | Screw Bolt |
| Installation Mode | Recommended Tight Torque |
| Breaking Capacity | AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms |
| Feature | Small Size with High Current Rating for Short Circuit Protection |
| Usage Category | AR |
