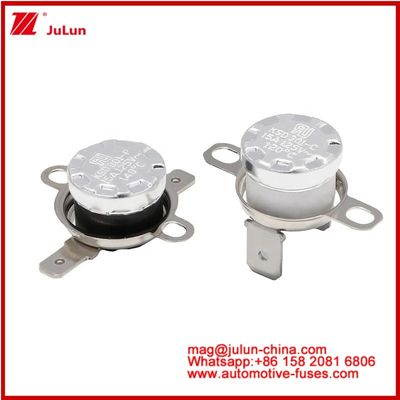

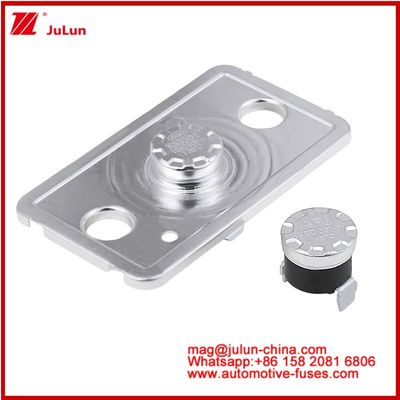

KSD For Home Appliances Ovens Kettles High Quality Bimetal Thermostats Coffee Machines
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | JULUN |
| Certification: | CE UL CCC |
| Numéro de modèle: | thermostat bimétallique de ksd |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 |
|---|---|
| Prix: | 0.7~1.5 |
| Détails d'emballage: | CARTON |
| Délai de livraison: | 1 à 2 semaines |
| Conditions de paiement: | Tt |
| Capacité d'approvisionnement: | 1000K/fois |
|
Détail Infomation |
|||
| Type de contact: | normalement fermé ou normalement ouvert | Visage de capteur de température: | chapeau en aluminium ou tête de cuivre. |
|---|---|---|---|
| Maison: | en plastique ou en céramique. | Tension et courant: | C.A. 125V 15A maximum ; AC250V 5A 10A 15A 16A maximum |
| ActionTempérature: | 0 à 250°C | Déviation de la température:: | degré ±3/±5/±10 ou selon la demande du client |
| Resistanc d'isolation: | AC50Hz 1500V/minute, aucun aveuglement de panne (état normal) | Cycle de vie: | périodes ≥100000 |
| Mettre en évidence: | bimetal thermostat for home appliances,oven thermostat with warranty,coffee machine temperature sensor |
||
Description de produit
The Thermistor Temperature Sensor has a high insulation resistance of AC50Hz 1500V / Min, with no breakdown or blinding in its normal state. This ensures that the sensor provides accurate temperature readings without any interference. It has an action temperature range of 0~250℃, which makes it suitable for use in various temperature-sensitive applications.
The Thermistor Temperature Sensor is a pin type sensor that can handle a maximum current of 10A and a maximum voltage of 250V. This makes it ideal for use in various electronic applications that require temperature sensing. The sensor is easy to install and provides accurate temperature readings, making it a popular choice for many different applications.
- Product Name: Thermistor Temperature Sensor
- Two kinds of mounting bracket: Movable Or Immovable
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Circuit resistance: ≤50mΩ (Initial Value)
- Life cycle: ≥100000 Times
- Temperature sensor face: Aluminum Cap Or Copper Head
These features make the Thermistor Temperature Sensor ideal for use in various appliances, including Hot Water Kettle, KSD301, with a temperature range of 0~250°C.
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Recovery and Action Temperature Difference | 0 To 25 Degrees, Or According To Client's Request |
| Action Temperature | 0~250℃ |
| Temperature Sensor Face | Aluminum Cap Or Copper Head |
| Life Cycle | ≥100000 Times |
| Temperature Deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Contact Type | Normally Closed Or Normally Open |
| House | Plastic Or Ceramic |
| Mounting Bracket | Two kinds: Movable Or Immovable |
| Terminal Type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
Temperature controller, 10A 250V, Household appliance
